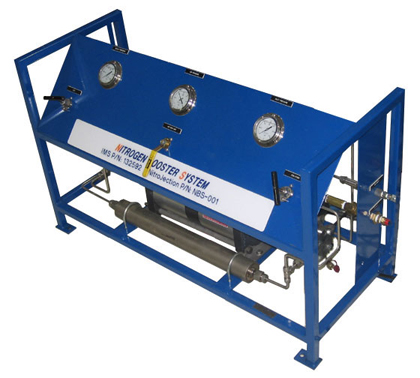

The NitroJection NBS-1000 Booster System
Nitro Booster System Product Sheet (PDF)
The NitroJection Nitro Booster System (NBS) provides a compact, portable source for high pressure nitrogen gas required by gas assist injection molders. This system is cost effective where no consistent source of high pressure nitrogen gas is available. The air-driven booster package is supplied fully assembled, tested and ready for turnkey installation and gas feed to NitroJection’s NSU Series gas assist controller. The Nitrogen Booster is designed to receive regulated nitrogen (500 PSI min.) from gas cylinders or other nitrogen source, and intensify the pressure up to 6000 PSI. The final output pressure is controlled by an adjustable mechanical pilot pressure switch. All that is required is clean plant air at a minimum 100 PSI, and regulated incoming nitrogen pressure.
Operating Requirements:
- Output pressure up to 6000 PSI
- Pneumatically Driven Gas Booster – requires shop air 100 PSI & Nitrogen 240 PSI up to ~ 3,000 PSI
- Control Panel includes: Inlet Pressure, Outlet Pressure and Drive air pressure gauges
- Air and Nitrogen isolation valves, System vent valve
